Lamp Controller
QR code
share
SZ10-NEMA-LoRa street lamp controller is a new controller developed by Shuncom to meet the market demand. It is an important part of the street lamp control system. Its core chip adopts self-developed LoRaWAN wireless communication module and cooperates with professional hardware and software design, the product has the advantages of powerful function, small size, easy to implement, free wiring, reliable work, easy to maintain, etc. It is a high-performance and energy-saving product specially developed for intelligent street lighting.
Product DetailTechnical ParaApplication planClick to download
Description

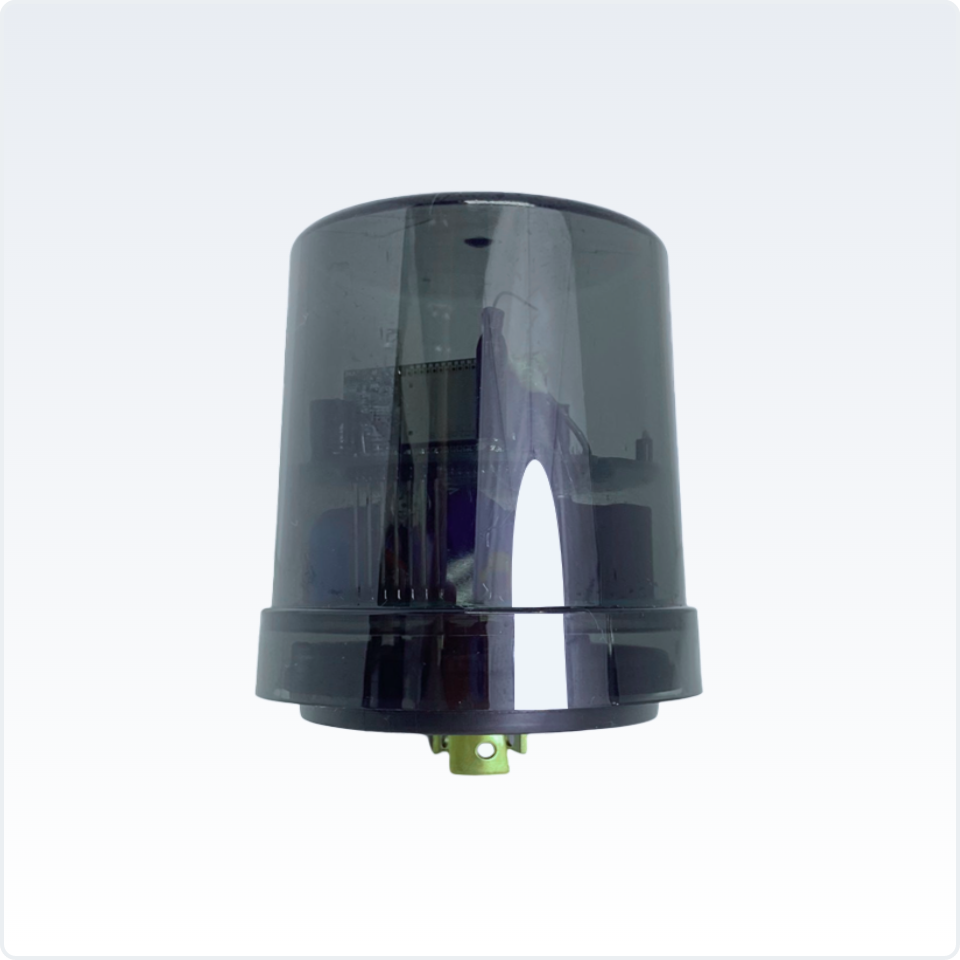

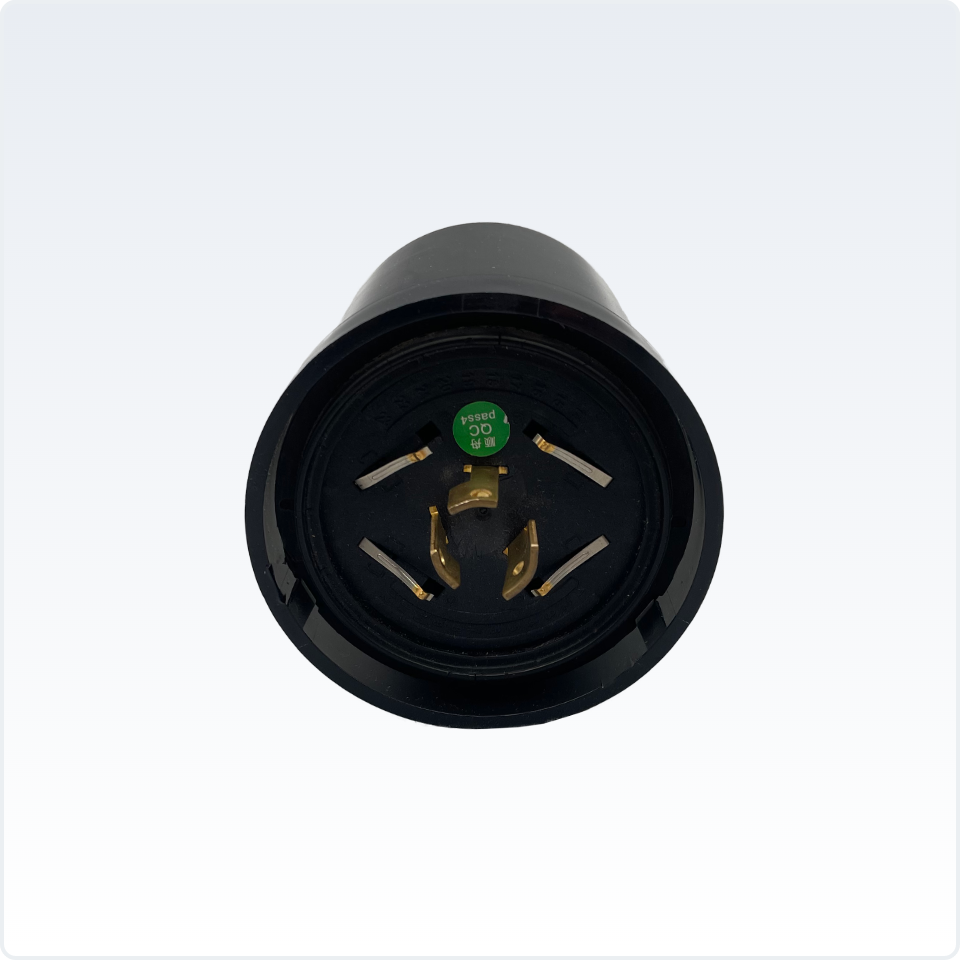

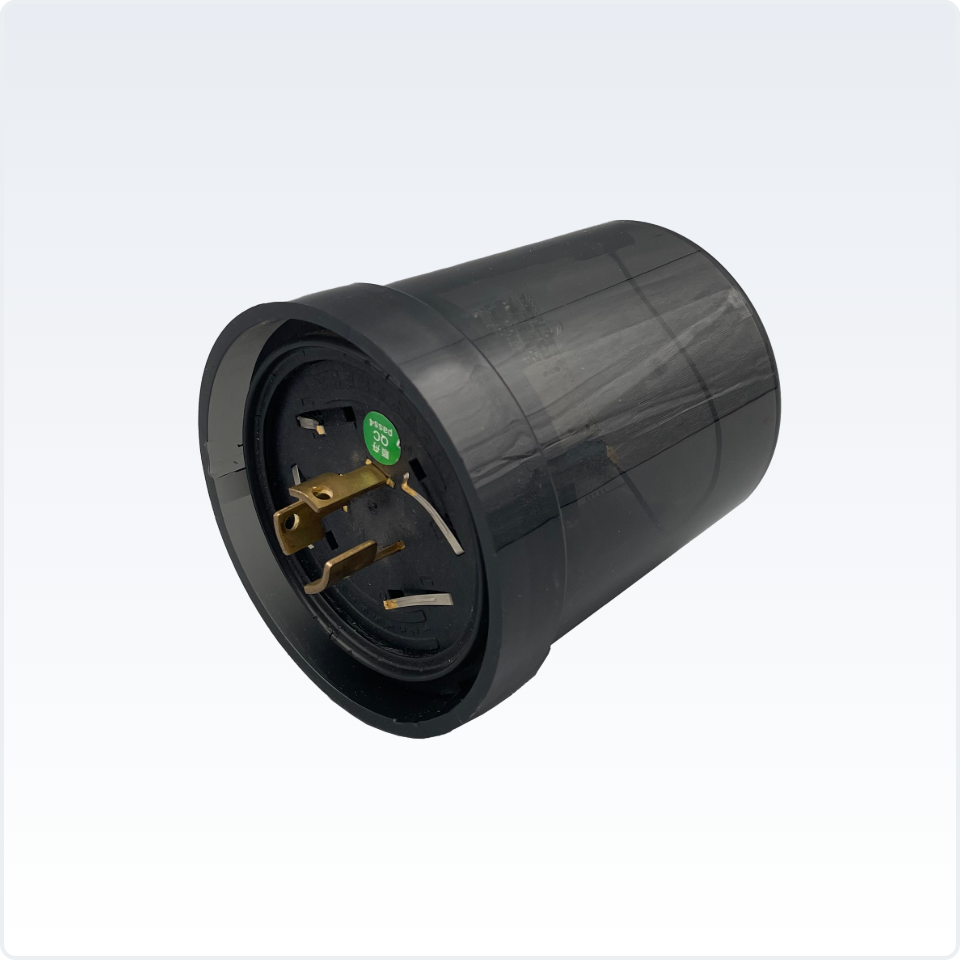

Twist-lock type NEMA led street light controller with photocell. The SZ10-NEMA-LoRa controller complies with the LoRaWAN Specification 1.0.1 ClassC standard issued by the LoRa Alliance for easy and fast access to LoRaWAN networks. It has low power consumption, long transmission distance, strong anti-interference and so on.
Overview
Quick Details
Place of Origin:Shanghai, China
Brand Name:Shuncom (OEM is acceptable)
Type:Remote Control
Max. Load Power:400W
Voltage:220V
Name:Twist-lock type NEMA led street light controller with photocell
Certificates:CE ROHS EMC
Supply voltage:AC110-277V
IP Grade:IP65
Band:EU433/EU868/US915/AU915/AS923, etc.
Dimming Control Type:0-10V/PWM
Dimensions:84Dia.*97.8(mm)
Working temperature:-40℃~+85℃
Product Output:Single-phase communication
Rated Output Current:2A Rated 10A MAX
Packaging & Delivery
Selling Units:Single item
Single package size:48X32X31.5 cm
Single gross weight:12.000 kg
Package Type:each piece in one small paper box(9cm * 9cm * 12cm), 35 boxes in one master carton(48cm * 32cm * 31.5cm)
Lead Time:
Quantity(Pieces)
1–10
1–100
101–1000
>1000
Est. Time(days)
3
7
15
To be negotiated
Specification
Setting Information
Data collection
U,I,P.Q.COSΦ
Transmit power
20dBm±1dBm（max）
Sensitivity
-136dBm±1dBm（@SF=12）
Antenna gain
3DB
Antenna standing wave
<2.0
Antenna type
Built-in
SZ10_LoRa_NEMA street light controller inside contains current and voltage measurement circuit, which can collect the load status of street light controller in real time, greatly reduce the work pressure of street light management department and improve work efficiency, thereby significantly improving social energy-saving benefits.
With current, voltage, Power, electricity, frequency, temperature detection and other functions
Over-current protection, lamps condition detection and default lighting functions
Switch and the dimming suitable for lamps, such as LED lamp, high voltage sodium lamp and metal halide lamp etc.
Overload protection design based on Security
Easy and simple installation, can respond to the instructions sent by the center in seconds.
Setting Information | |
Data collection | U,I,P.Q.COSΦ |
Transmit power | 20dBm±1dBm（max） |
Sensitivity | -136dBm±1dBm（@SF=12） |
Antenna gain | 3DB |
Antenna standing wave | 《2.0 |
Antenna type | Built-in |
Street Lighting IoT Solution
Focus On Clients
As an important part of smart cities, the wireless smart single lamp controller which independently developed by Shuncom AIOT has created a new type of road lighting
soltuion, and will lead the future lighting development trend.
THe whole system is based on advanced wireless communication technology and adopts a unified cloud platform for efficient management. Without changing the structure of the lamp or adding wiring, it can realize remote switching, dimming, monitoring and circuit control of a single lamp, and support longitude and latitude scheduled control, every other lamp lights on, etc. In addition, dimming can be realized based on pedestrian 35 flow, so as to achieve energy saving, environmental protection and intelligent control.
System Features
Multiple communication technology available, including zigbee, NB-IoT, LoRa, Cat.1, 5G;
No need pre-arrange wiring, easy installation, short commissioning time, prior investigation of the project site is not required, plug and play;
Long communication range, strong anti-interference, flexible networking, can realize data transmission of one point to multi-points devices and multi-points to multi-points devices, can form star network, mesh network, etc.
Rich expandability, can be connected via Zigbee. Rain and snow sensor, illuminance sensor , vehicle flow sensor, switching value sensor, 4-20mA sensor (data collection), 0-5V sensor (data collection), etc.
The platform uses B/S architecture, provide service interfaces based on Web Service. Support access of large capacity wireless street lighting, provide control and management function .
Intelligent strategy management function, realize on-demand control or automatic control as per customer needs.
Function Description
Wireless communication via Zigbee, NB-IoT, LoRa, etc., transmit and receive data in real time;
Self-diagnosis and self-recovery;
Remote or local automatic dimming of street lamp to save energy;
Wireless router, can also act as repeater;
Monitor lamp data, including current, voltage, power, etc.
.
SZ10-NEMA (LTE Cat.1) lamp controller manual V3.2 pdf ⬇
SZ10-NEMA (ZigBee with photocell) lamp controller manual V3.4 pdf ⬇
SZ10-NEMA-LoRa (with photocell) lamp controller manual V3.3 pdf ⬇
