Lamp Controller
Description

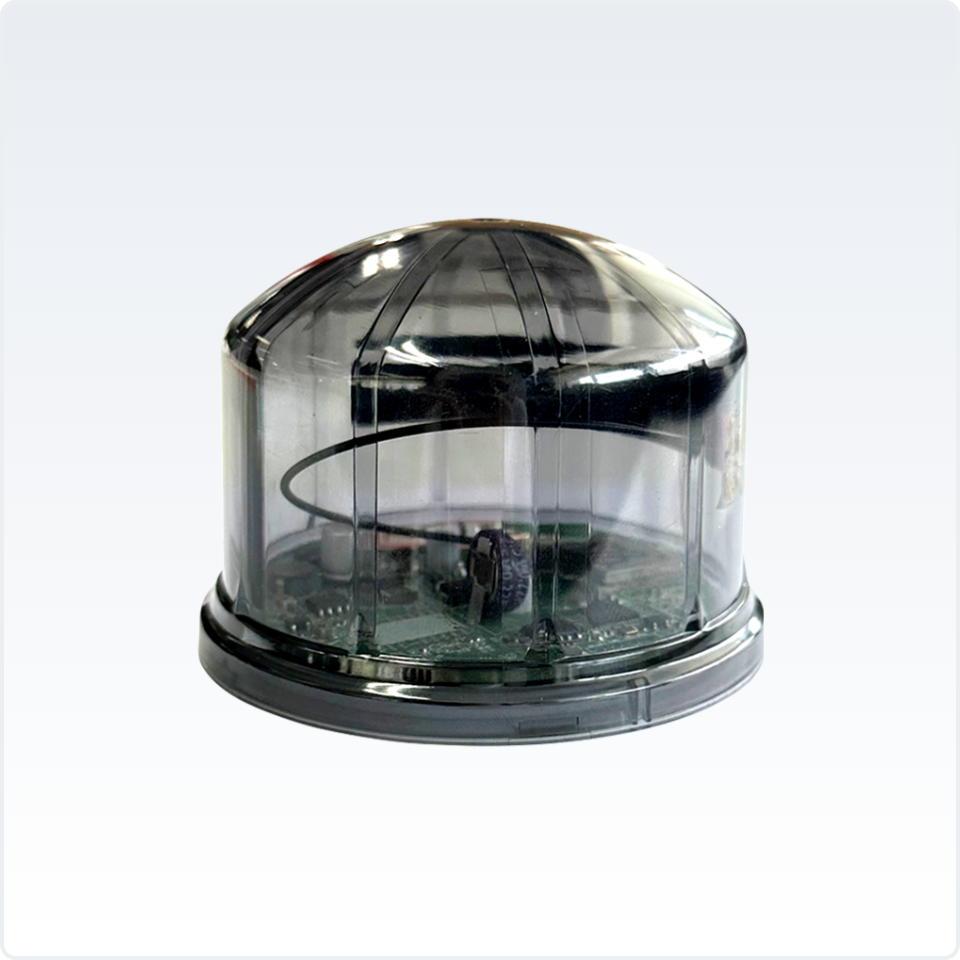

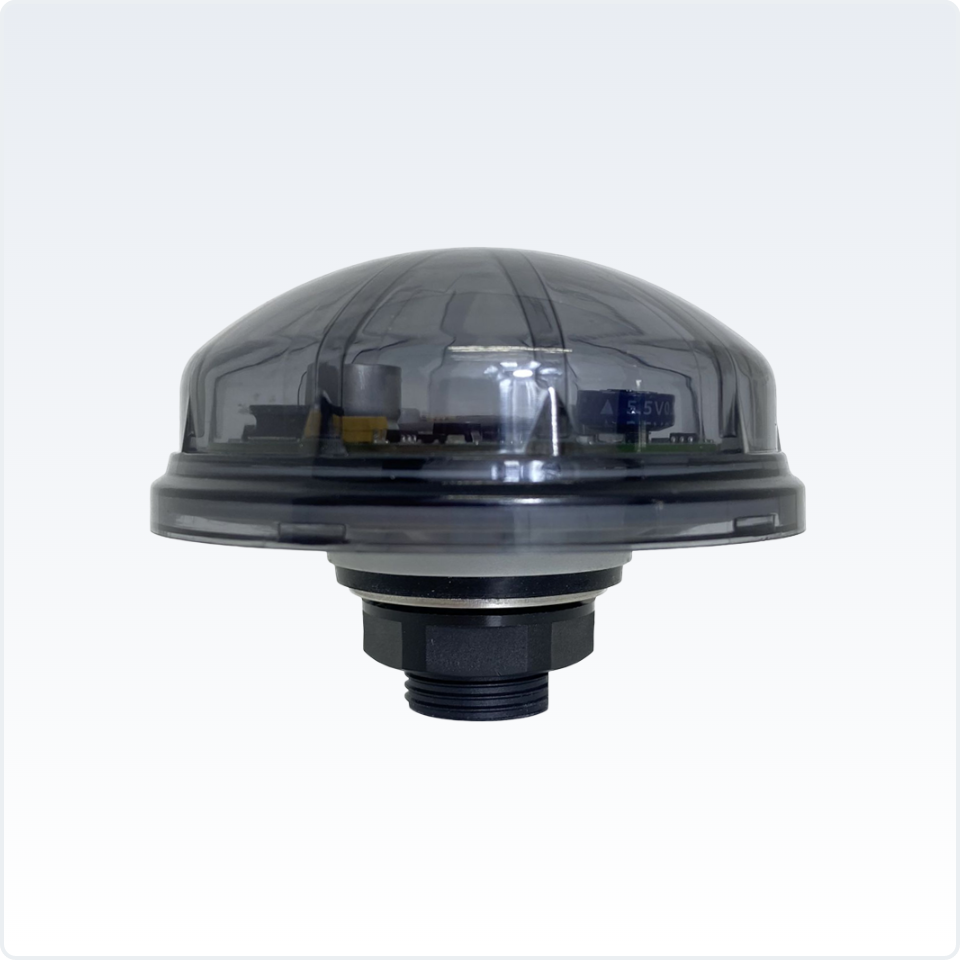

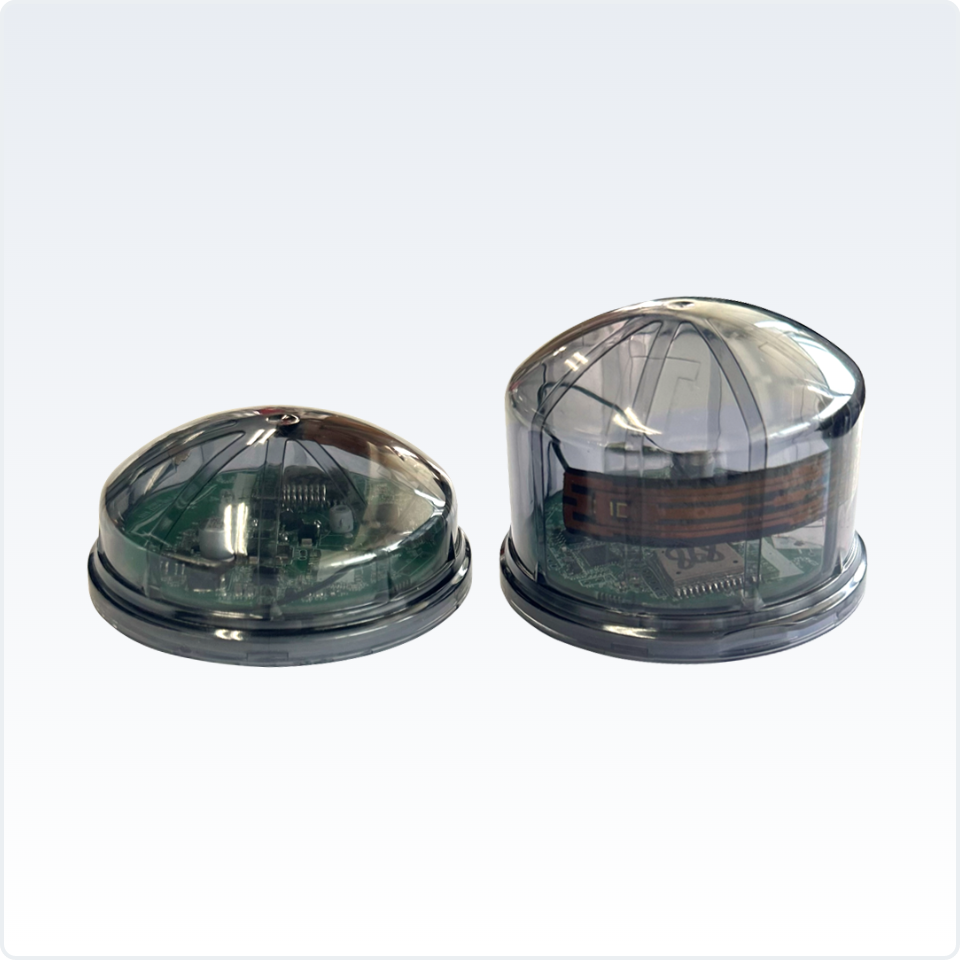

SZ10-ZHAGA controller is a new type of controller developed by Shunzhou Intelligent to meet the needs of foreign markets and digital dimmable power supply. It is an important part of the street lamp control system. Its core chip adopts Zigbee wireless communication module independently developed. With professional hardware and software design, the interface conforms to the ZHAGA Book18 standard, which makes the product powerful, easy to implement, free of wiring, reliable, easy to maintain, etc. It is a high-performance street lamp energy-saving product specially developed for intelligent street lighting.
The SZ10-ZHAGA controller complies with the IEEE802.15.4 protocol of the Zigbee communication standard. It has the advantages of long communication distance, strong anti-interference ability, flexible networking, etc., and can realize data between devices between point-to-multipoint and multi-point-to-multipoint. Transmission can form a MESH network structure such as a star network or a mesh network. The interface complies with the ZHAGA Book18 standard and uses 4Pin sockets and shrapnel contacts to provide mechanical and electrical interconnection between the light control unit and the luminaire. And with rugged twist-lock contacts for reliable power interconnection, it is ideal for outdoor commercial and public lighting.
The SZ10-ZHAGA single-lamp controller contains a DALI drive circuit, which can collect the load and power consumption of the digital drive power in real time, greatly reduce the work pressure of the street lamp management department, improve work efficiency, and significantly improve the social energy-saving efficiency.
Main Performance Characteristics
● Interface conforms to ZHAGA Book18 standard
● Input power: DC24V
● Output signal: DALI2.0 protocol
● With remote turn-on, turn off, dimming, etc.
● Query current and voltage , temperature, active power, running time, dimming level, lamp fault detection and other functions
● With lamp status detection, default lighting and other functions
● Support local timing strategy, local latitude and longitude strategy, local light perception strategy
● Support GPS / Beidou positioning , Lamp fault support reverse positioning query
● Suitable for Philips full range of SR digital drive power
● Wireless frequency: 2.4G ISM Global free frequency band
● Wireless channel: 16
● Single network capacity: 65535 nodes
● Complete ZIGBEE wireless networking Communication protocol
● Industrial temperature range: -40 ° C ~ +85 ° C
● Easy to install, can respond to commands sent by the center in a few
No | Parameter | Value | Remarks |
1 | IP Code | IP65 | |
2 | Wireless Frequency | EU433MHz, CN470 MHz, EU868 MHz, US915 MHz, AS923 MHz, etc. | LoRaWAN Regional Parameters |
3 | Dimming Type | DALI2.0 / D4i | AUX power supply driver |
4 | Transmission Distance | 2 km | under normal road condition |
5 | Data Collection | U, I, P, Q, COSΦ | |
6 | Antenna Frequency Band | EU433MHz, CN470 MHz, EU868 MHz, US915 MHz, AS923 MHz, etc. | |
7 | Antenna Gain | 3dB | |
8 | Antenna VSWR | ≤2.0 | |
9 | Antenna Type | Built-in |
No | Parameter | Value | Remarks |
1 | IP Code | IP65 | |
2 | Wireless Frequency | 2.4G | |
3 | Dimming Type | DALI2.0 / D4i protocol | Optional |
4 | Transmission Distance | 400 m | * |
5 | Data Collection | U, I, P, Q, COSΦ | |
6 | Antenna Frequency Band | 2.4G | |
7 | Antenna Gain | 3dB | |
8 | Antenna VSWR | ≤1.5 | |
9 | Antenna Type | Built-in |
Focus on clients
As an important part of smart cities, the wireless smart single lamp controller which independently developed by Shuncom AIOT has created a new type of road lighting soltuion, and will lead the future lighting development trend.
THe whole system is based on advanced wireless communication technology and adopts a unified cloud platform for efficient management. Without changing the structure of the lamp or adding wiring, it can realize remote switching, dimming, monitoring and circuit control of a single lamp, and support longitude and latitude scheduled control, every other lamp lights on, etc. In addition, dimming can be realized based on pedestrian 35 flow, so as to achieve energy saving, environmental protection and intelligent control.

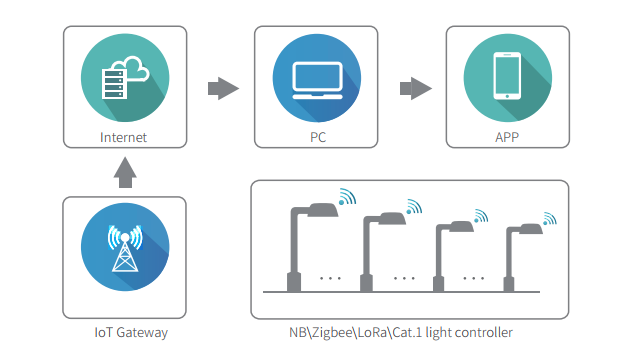

Street Lighting IoT Solution
System Features:
Multiple communication technology available, including zigbee, NB-IoT, LoRa, Cat.1, 5G;
No need pre-arrange wiring, easy installation, short commissioning time, prior investigation of the project site is not required, plug and play;
Long communication range, strong anti-interference, flexible networking, can realize data transmission of one point to multi-points devices and multi-points to multi-points devices, can form star network, mesh network, etc.
Rich expandability, can be connected via Zigbee. Rain and snow sensor, illuminance sensor , vehicle flow sensor, switching value sensor, 4-20mA sensor (data collection), 0-5V sensor (data collection), etc.
The platform uses B/S architecture, provide service interfaces based on Web Service. Support access of large capacity wireless street lighting, provide control and management function .
Intelligent strategy management function, realize on-demand control or automatic control as per customer needs.
Function Description:
Wireless communication via Zigbee, NB-IoT, LoRa, etc., transmit and receive data in real time;
Self-diagnosis and self-recovery;
Remote or local automatic dimming of street lamp to save energy;
Wireless router, can also act as repeater;
Monitor lamp data, including current, voltage, power, etc.
