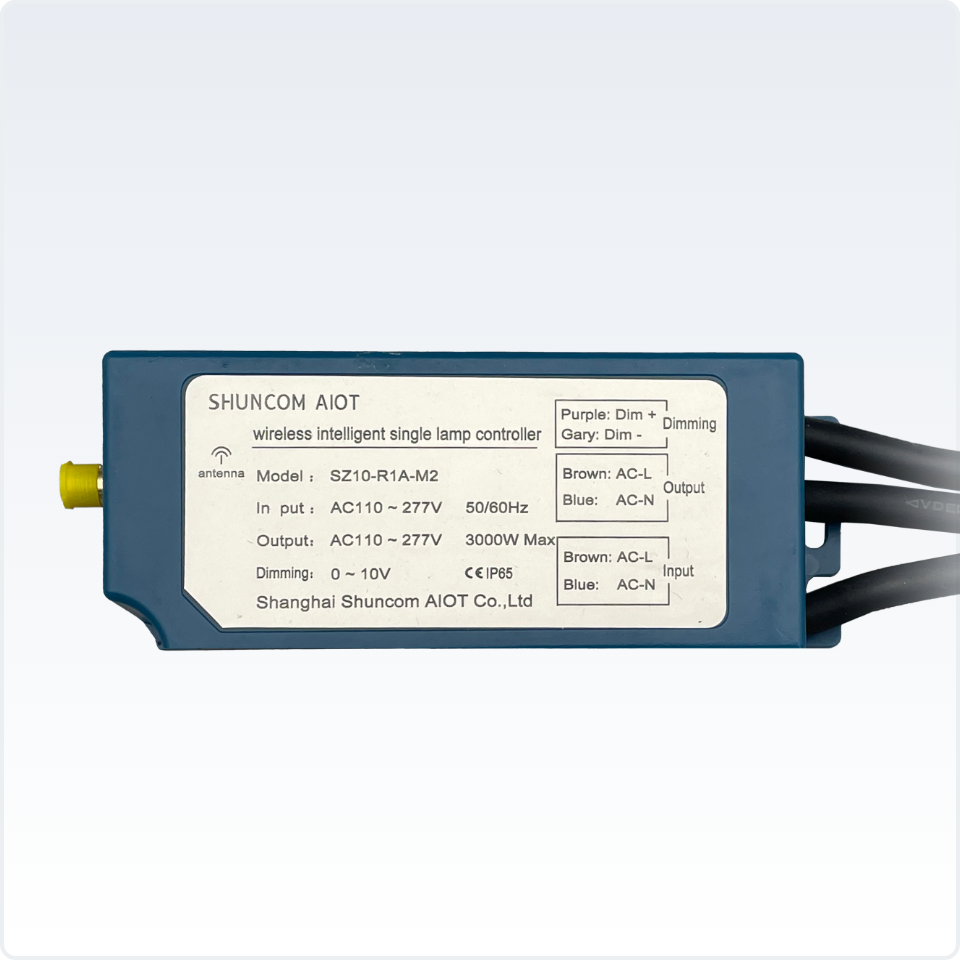

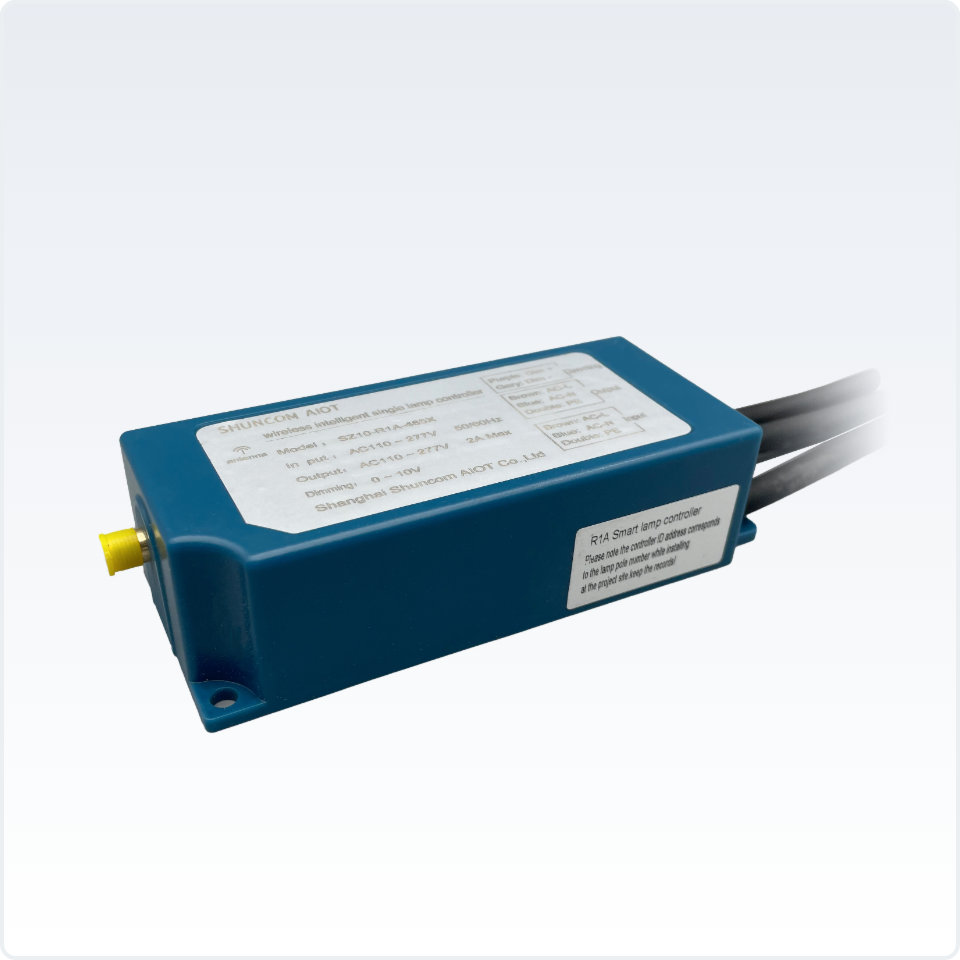

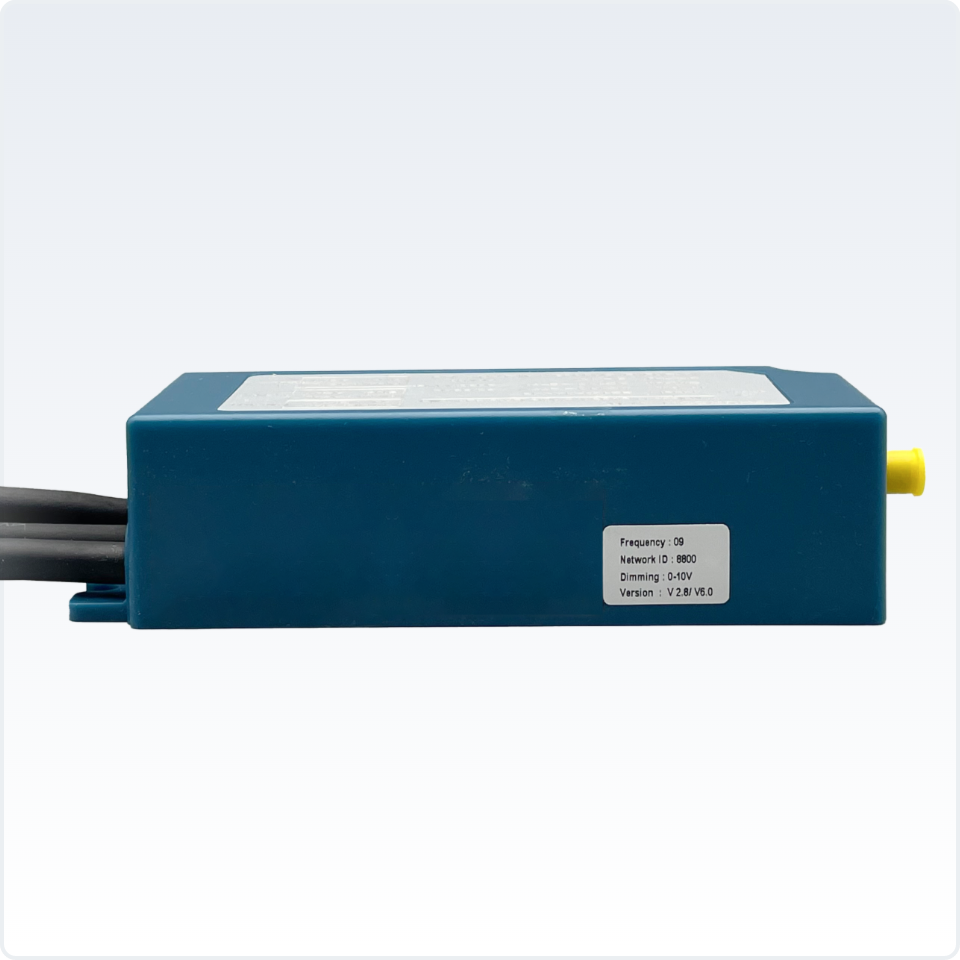

SZ10-R2A single lamp controller is a new type of controller developed by Shuncom in order to meet the market demand. It is an important part of street lighting control system. The core chip of SZ10-R2A controller adopts self-developed ZigBee wireless communication module. Together with professional hardware and software design, SZ10-R1A controller offers powerful functions, small size, easy implementation, no need of wiring, reliable operation and easy maintenance. With all these advantages, SZ10-R1A controller is a high performance and energy saving product, specialized for intelligent street lighting.
Product DetailTechnical ParaApplication planClick to download
Description
Product Description
SZ10-R2A controller adopts Zigbee communication, using single input and dual output control mode. It has the advantages of long communication distance, strong anti-interference ability and flexible networking. It can realize peer-to-peer and peer-to-multi peer transparent data transmission among devices, and can form star network or mesh network topology.
SZ10-R2A street light controller contains current and voltage measurement circuit inside, it can collect the load working condition of street light controller in real time, greatly reduce the work pressure of street light management department, improve work efficiency, and thus significantly improve social energy saving benefits.
Main Features
Input/Output power: AC 110~265V 50/60Hz;
With current, voltage, power, and frequency detection functions;
Local timing, latitude and longitude control;
Two-way switch and two 0 ～ 10V or PWM dimming signal output functions；
With over-current protection, lamp condition detection, default lighting, etc.；
Suitable for switching and dimming of LED lamps, high pressure sodium lamps, metal halide lamps, etc.；
Safety-based overload protection design;
Wireless frequency: 2.4G ISM global free frequency band；
Wireless channels: 16；
Single network capacity: 65535 nodes；
Industrial-grade operating temperature range: -40° Cto + 85 ° C；
Simple and convenient installation, can respond to the instructions sent by the data center within seconds after installation.
Technical Parameters
No | Parameter | Value | Remarks |
1 | Dimensions | 130×52.15×34 (mm) | |
2 | IP Code | IP65 | |
3 | Rated Output Current | 5A | 800W MAX |
4 | Radio Frequency | 2.405~2.485GHz | 16 channels selectable |
5 | Dimming Type | 0-10V/PWM | Optional |
6 | Transmission Distance | 400 m | * |
7 | Product Output | Single-phase AC | |
8 | Data Collection | U, I, P, Q, COSΦ | |
9 | Antenna Band | 2.4G | |
10 | Antenna Type | External |
*Between nodes in a conventional road environment.
Installation Requirements
1) When wiring, avoid reverse connection of positive and negative dimming; avoid reverse connection of mains input and mains output; avoid wrong connection of the first and second output channels.
2) Prevent rainwater soaking at the power cord connection.
3) The antenna should avoid breaking and falling off; avoid contact between the metal connector of the antenna and other metals; avoid contact between the antenna and the street light pole.
4) It should be firmly fixed during installation and avoid scratching of the insulation.
Technical Parameters
| No | Parameter | Value | Remarks |
| 1 | Dimensions | 130×52.15×34 (mm) | |
| 2 | IP Code | IP65 | |
| 3 | Rated Output Current | 5A | 800W MAX |
| 4 | Radio Frequency | 2.405~2.485GHz | 16 channels selectable |
| 5 | Dimming Type | 0-10V/PWM | Optional |
| 6 | Transmission Distance | 400 m | * |
| 7 | Product Output | Single-phase AC | |
| 8 | Data Collection | U, I, P, Q, COSΦ | |
| 9 | Antenna Band | 2.4G | |
| 10 | Antenna Type | External |
*Between nodes in a conventional road environment.
Street Lighting IoT Solution
Focus On Clients
As an important part of smart cities, the wireless smart single lamp controller which independently developed by Shuncom AIOT has created a new type of road lighting
soltuion, and will lead the future lighting development trend.
THe whole system is based on advanced wireless communication technology and adopts a unified cloud platform for efficient management. Without changing the structure of the lamp or adding wiring, it can realize remote switching, dimming, monitoring and circuit control of a single lamp, and support longitude and latitude scheduled control, every other lamp lights on, etc. In addition, dimming can be realized based on pedestrian 35 flow, so as to achieve energy saving, environmental protection and intelligent control.
System Features
Multiple communication technology available, including zigbee, NB-IoT, LoRa, Cat.1, 5G;
No need pre-arrange wiring, easy installation, short commissioning time, prior investigation of the project site is not required, plug and play;
Long communication range, strong anti-interference, flexible networking, can realize data transmission of one point to multi-points devices and multi-points to multi-points devices, can form star network, mesh network, etc.
Rich expandability, can be connected via Zigbee. Rain and snow sensor, illuminance sensor , vehicle flow sensor, switching value sensor, 4-20mA sensor (data collection), 0-5V sensor (data collection), etc.
The platform uses B/S architecture, provide service interfaces based on Web Service. Support access of large capacity wireless street lighting, provide control and management function .
Intelligent strategy management function, realize on-demand control or automatic control as per customer needs.
Function Description
Wireless communication via Zigbee, NB-IoT, LoRa, etc., transmit and receive data in real time;
Self-diagnosis and self-recovery;
Remote or local automatic dimming of street lamp to save energy;
Wireless router, can also act as repeater;
Monitor lamp data, including current, voltage, power, etc.
