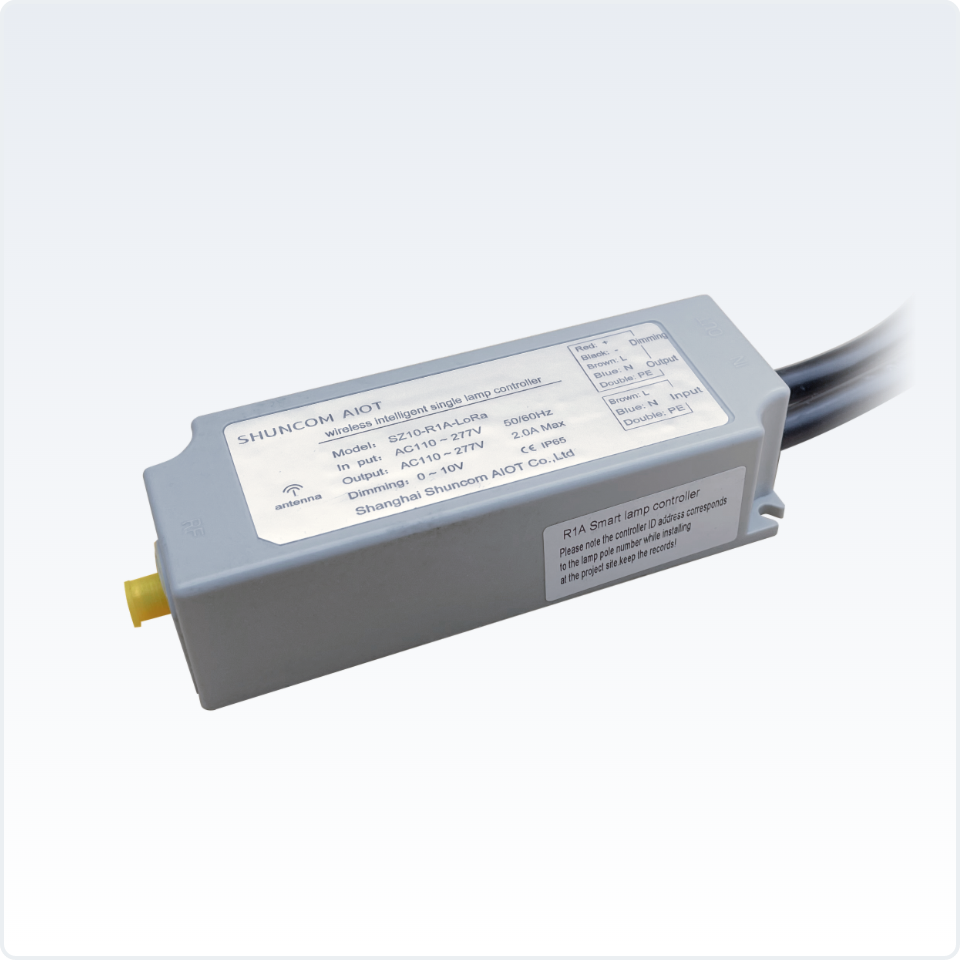

SZ10-R1A-M-LoRa street light controller is a new controller developed by Shuncom to meet the market demand. It is an important part of the street lamp control system. Its core chip adopts self-developed LoRaWAN wireless communication module and cooperates with professional hardware and software design, the product has the advantages of powerful function, small size, easy to implement, free wiring, reliable work, easy to maintain, etc. It is a high-performance and energy-saving product specially developed for intelligent street lighting.
Product categories Light Controller
Applications Smart Street Lighting
Model M Type
Software Smart Lighting Management Platform
Optional built-in sensor GPS/Tilt/Power outage
Communication Protocols LTE CAT.1/Zigbee/LoRaWan/LoRaMesh
Product DetailTechnical ParaApplication planClick to download



Product Introduction

SZ10-R1A-M street light controller is a new type of controller developed by Shunzhou Intelligent to meet the market demand. It is an important part of the street light control system. Its core chip adopts the self-developed ZigBee wireless communication module, with professional hardware and The software design makes the product powerful, small in size, easy to implement, free of wiring, reliable in operation, easy to maintain, etc. It is a high-performance street lamp energy-saving product specially developed for intelligent street lighting.
The SZ10-R1A-M controller complies with the IEEE802.15.4 protocol of the ZigBee communication standard. It has the advantages of long communication distance, strong anti-interference ability, flexible networking, etc. It can realize point-to-multipoint and multi-point-to-multipoint devices. Inter-data transmission can form a mesh network structure such as a star network or a mesh network.
The SZ10-R1A-M street light controller contains current and voltage metering circuit. It can collect the load working condition of the street lamp controller in real time, greatly reduce the working pressure of the street lamp management department, improve work efficiency, and significantly improve the social energy saving efficiency.


Product Performance

Safety-based overload protection design;
with current, voltage, power, frequency, temperature detection, etc.;
1 switch and 0~10V or PWM dimming signal output function;
with overcurrent protection, lamp status detection, default lighting Such functions;
easy to install, can respond to commands sent by the center in a few seconds;
suitable for switching and dimming of LED lamps, high-pressure sodium lamps, metal halide lamps, etc.


The Product Parameters

Supply voltage

AC90～305V 50/60Hz

Frequency band

2.4G

Output rated current

2A Max

Communications network

Zigbee networking

Dimming type

0-10V/PWM

Wireless channel

16

Product output

Singlephasecommunication

Transmission distance

400m

Data collection

U, I, PQCOSΦ

Antenna gain

3DB

Dimensions

118×43×30 (mm)

Antenna standing wave

“2.0

Protection level

IP65

Antenna type

External

range of working temperature

-40°C～+85°C (industrial grade)






The Product Parameters

Supply voltage

AC90～305V 50/60Hz

Frequency band

2.4G

Output rated current

2A Max

Communications network

Zigbee networking

Dimming type

0-10V/PWM

Wireless channel

16

Product output

Singlephasecommunication

Transmission distance

400m

Data collection

U, I, PQCOSΦ

Antenna gain

3DB

Dimensions

118×43×30 (mm)

Antenna standing wave

“2.0

Protection level

IP65

Antenna type

External

range of working temperature

-40°C～+85°C (industrial grade)





Focus on clients

As an important part of smart cities, the wireless smart single lamp controller which independently developed by Shuncom AIOT has created a new type of road lighting soltuion, and will lead the future lighting development trend.

THe whole system is based on advanced wireless communication technology and adopts a unified cloud platform for efficient management. Without changing the structure of the lamp or adding wiring, it can realize remote switching, dimming, monitoring and circuit control of a single lamp, and support longitude and latitude scheduled control, every other lamp lights on, etc. In addition, dimming can be realized based on pedestrian 35 flow, so as to achieve energy saving, environmental protection and intelligent control.

Street Lighting

Street Lighting IoT Solution

System Features:

  • Multiple communication technology available, including zigbee, NB-IoT, LoRa, Cat.1, 5G;

  • No need pre-arrange wiring, easy installation, short commissioning time, prior investigation of the project site is not required, plug and play;

  • Long communication range, strong anti-interference, flexible networking, can realize data transmission of one point to multi-points devices and multi-points to multi-points devices, can form star network, mesh network, etc.

  • Rich expandability, can be connected via Zigbee. Rain and snow sensor, illuminance sensor , vehicle flow sensor, switching value sensor, 4-20mA sensor (data collection), 0-5V sensor (data collection), etc.

  • The platform uses B/S architecture, provide service interfaces based on Web Service. Support access of large capacity wireless street lighting, provide control and management function .

  • Intelligent strategy management function, realize on-demand control or automatic control as per customer needs.

Function Description:

  • Wireless communication via Zigbee, NB-IoT, LoRa, etc., transmit and receive data in real time;

  • Self-diagnosis and self-recovery;

  • Remote or local automatic dimming of street lamp to save energy;

  • Wireless router, can also act as repeater;

  • Monitor lamp data, including current, voltage, power, etc.
